High-efficiency automatic filling machine for liquid, paste, cream and granule. Reliable bottle filling equipment manufacturer with custom solutions for food, beverage and cosmetic industries.

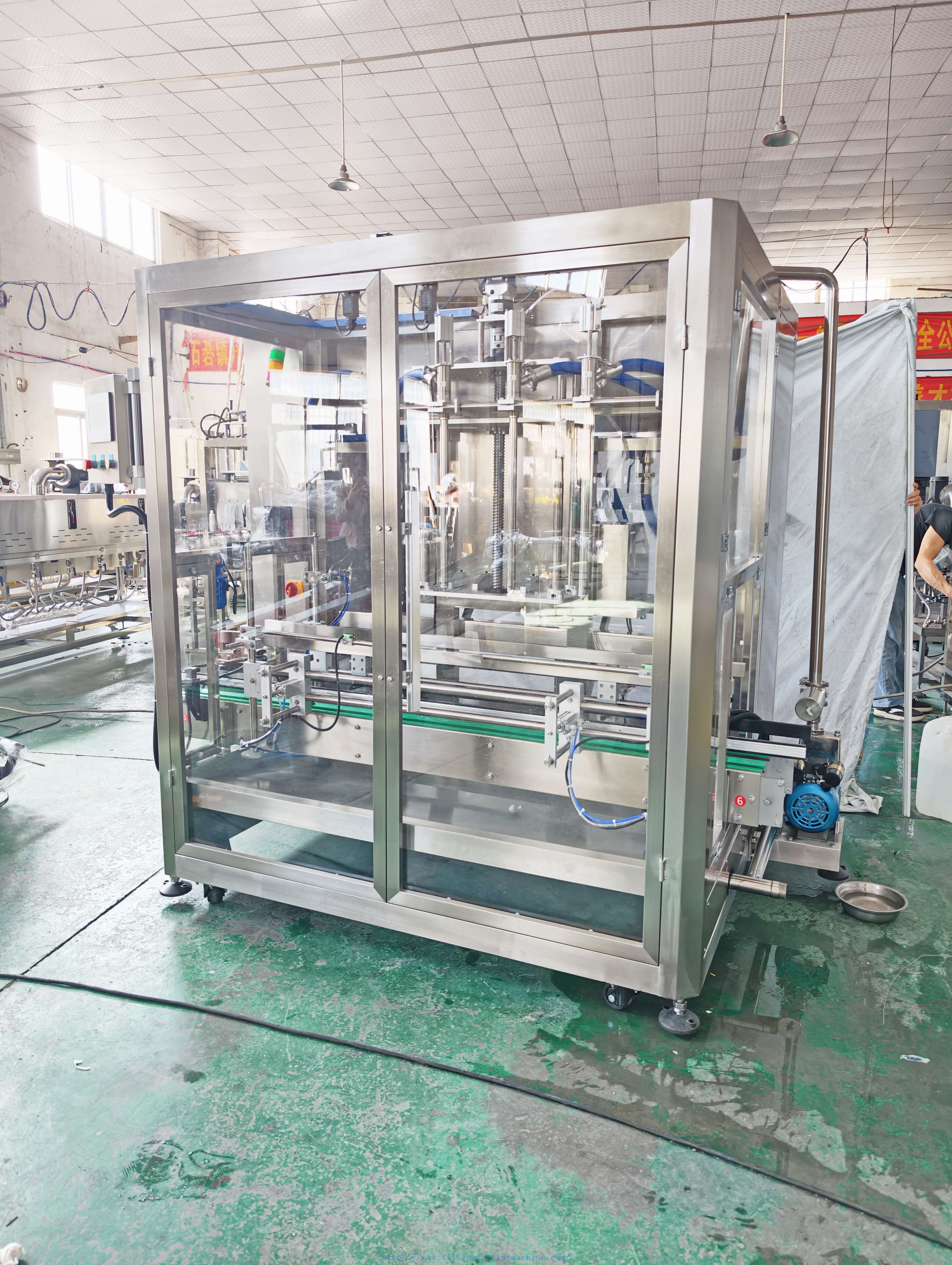

Automatic filling machine is designed for accurate and stable filling of liquid, paste, granule and other materials. Widely used in food, beverage, cosmetic and pharmaceutical industries, it supports custom capacity and structure to meet different production requirements.

Basic Information

• Model: JCH-FM Series

• Condition: New

• Certification: CE, ISO9001

• Warranty: 1 Year

• After-sales Service: Video technical support, Online support, Engineers available to service machinery overseas

• Place of Origin: Guangzhou, China

Technical Parameters

• Filling Type: Liquid / Paste / Cream / Sauce

• Filling Head: 2/4/6/8/10/12 heads (Customizable)

• Filling Volume: 50ml – 5000ml (Customizable)

• Filling Accuracy: ±0.5% – ±1%

• Filling Speed: 1000 – 6000 bottles/hour (Depends on bottle volume & type)

• Working Principle: Piston filling / Gravity filling/ gear pump

• Material: Stainless Steel 304 / 316L

• Voltage: 220V/380V, 50/60Hz (Customizable)

• Power: 1.5KW – 4KW

• Air Pressure: 0.4-0.6 MPa

• Dimension: Customizable (Example: 2000×1000×1500mm)

• Weight: 300kg – 800kg (Depends on model)

Application

• Food, Beverage, Cosmetic, Pharmaceutical, Chemical, Sauce, Oil, Honey, Paste, etc.

  (would base on client requirement to make the machine as well)
