Automatic Cream Filling Machine 4 Heads PLC Controlled Chemical Commodity Use 1000G Plastic Filler 1 Year Warranty High Accuracy

service on...

Function：	Filling
Original：	China Guangzhou
MOQ：	1 Set
Model：	Customizable
Manufacturer：	Yes we are
Oversea Service：	Yes, offer

Contact now whatsapp Leave a message

Product Details

Key attributes

Filling Volume

500 mL, 300 mL, 1000 mL

automatic grade

Automatic

Voltage

380 V

driven type

Pneumatic and Eletric

filling material

Cream, Lotion

application

Commodity, Chemical

packaging type

Stand-up Pouch

packaging material

Plastic

warranty

1 Year

After-sales Service Provided

Video Technical Support, Online support, Field installation, commissioning and training

key selling points

High Safety Level and High-accuracy

core components

Motor, Pump, PLC, Engine

filling nozzle

machinery test report

Provided

video outgoing-inspection

Provided

filling accuracy

99.5%

place of origin

Guangdong, China

Weight (KG)

600

brand name

JHC

dimension(l*w*h)

4000*1500*2100 mm

keywords

4 head Tracking Filling Machine

Function

Filling packaging

Type

Automatic

Advantage

Durable/high effect

Number of filling heads

4 heads

Filling range

1000-5000ml

Filling speed

2000-4000 bottles/hour

Machine size

4000*1500*2100mm

Machine net weight

900 kg

Power voltage

9KW

Packaging and delivery

Selling Units

Single item

Single gross weight

124.940 kg

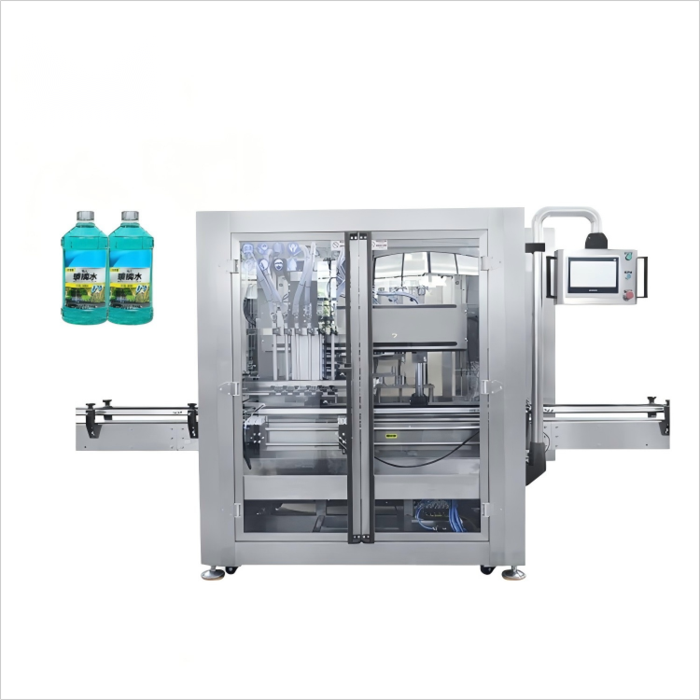

跟踪灌装 (4).png

Product Overview

1. Fast machine adjustment: fast switching of bottle type products, with formula saving function. After saving parameters, the machine adjustment can be completed with one button, which saves time and is very convenient and practical;

2. Wide range of applicable bottle types: as long as it can stand on the line without falling and the bottle mouth is vertically upward, it is also applicable to various special-shaped bottles. No special adjustment is required. The bottle can be placed on the conveyor at will, which greatly reduces the labor intensity of workers;

3. Wide range of applicable products: suitable for cream and oil products in the cosmetics and food industries: such as: shampoo, laundry detergent, hand soap, shower gel, conditioner, acid oxygen milk, essential oil, food/industrial oil, etc.;

4. High efficiency: fast filling speed, good stability, filling is controlled by servo motor, and the filling accuracy is high;
