Detergent shampoo chemical liquid filling line

Please edit the product details...

Daily liquid shampoo packaging line

also famous as Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub.

The standard production packaging line are main combines 3 parts of function

1.Filling shampoo /detergent/hand sanitizer/hand rub

2. Sealing Close the Cap

3. Labeling and Code date.

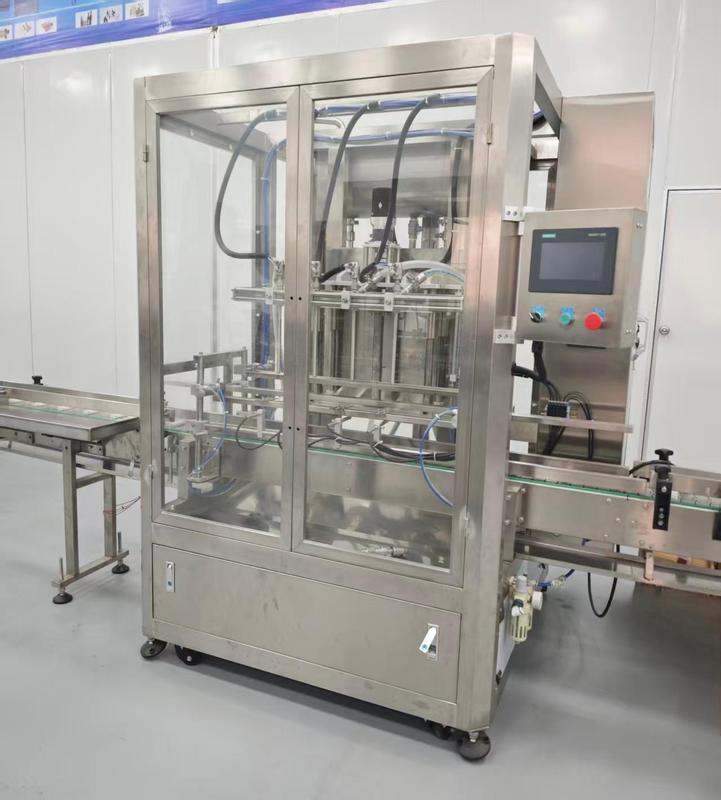

the 1st parts is Filling machine

Filling heads:1, 2, 4 , 6, 8, 12, 16, 20heads (can be customized)

Filling volume:100-1000ml adjustable (can be customized)

Filling type:    piston filling

Filling speed:1200-1800 bottles/hour(base on 4 heads)

Filling error:    ±1%

Conveyor speed:300-900meter/hour

Power:800W / 220V AC single phase

Program control:PLC + touch screen

The 2nd part Automatic capping machine

Equipment Overview:

The machine integrates automatic sorting ,arranging, upper cover, automatic screwing cap.It has no bottle to send cover, lack of cover automatic alarm function, high degree of automation. Automatic capping for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in leak proof, anti-theft.

Technical Parameters:

Capping range: Φ10~φ55mm (can be customized according to requirements)

Adapt to bottle height: 50~300mm (can be customized according to requirements)

Capping speed: 10~35 bottles/minute (Increasing the number of caps can increase the speed)

Rated voltage: 220V 50Hz

Power: 1.1KW

Air source: 06~0.8MPa

Bottle cap type: plastic, metal round cap, pump head cap, duckbill cap, etc.

The 3rd part Automatic bottle labeling machine

Fully automatic self-adhesive vertical round bottle labeling machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, such as cosmetics, daily chemicals, plastics and other industries. it can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.

Technical Parameters:

Label specifications: length 15mm~290mm; width 15mm~150mm

Product specifications: Φ25mm~90mm;

Product height: 25~300mm

Marked outer diameter: Φ280mm;

Marking inner diameter: Φ76mm

Labeling speed: 10~100 bottles/min

Labeling accuracy: ±1mm

Air pressure: 0.6~0.8Mpa

Power: 850w (step), 1150w (servo)

Voltage: 220V 50Hz

（You can choose a single machine or the entire production line, and the filling speed of each machine can also be customized）

(kindly notes all the machine line Can be customized and applicable according to customer requirements or bottle packaging requirements )
