Function：	Filling Capping/Sealing
Original：	China Guangzhou
MOQ：	1 Set
Model：	Customizable
Manufacturer：	Yes we are
Oversea Service：	Yes, offer

Contact now whatsapp Leave a message

Product Details

Key attributes

packaging type

CANS, Bottles, Barrel, case

warranty

1 Year

driven type

Electric

After-sales Service Provided

Video technical support, Field installation, commissioning and training, Online support

Voltage

220/380V

automatic grade

Automatic

packaging material

plastic, Metal, Glass, Wood, Other

application

Food, Beverage, Chemical, water/drink/beverage/juice

filling material

Milk, Water, Oil, Juice, sauce jam, shampoo, washing liquid

filling accuracy

99.5%

Weight (KG)

2500

place of origin

China Guangzhou

brand name

key selling points

Energy saving

machinery test report

Provided

video outgoing-inspection

Provided

core components

motor, Pressure vessel, Pump, PLC, Bearing, Engine

Number of filling heads

1/2/4/6/8/12 heads

Filling capacity

30ml-50ml, 100-500ml, 500-1000ml, 5L-30L And other volume

Filling form

Multi-head into bottle filling

Filling speed

10-60bottles/minute

Filling accuracy

±1%

Cap putting form

Elevator cap sorter feeding

Capping form

Servo grab and screw cap

Capping speed

10-60 bottles/minute

Total power

4.5KW/AC220V/380V, 50/60HZ

Program control

PLC+ touch screen

Packaging and delivery

Selling Units

Single item

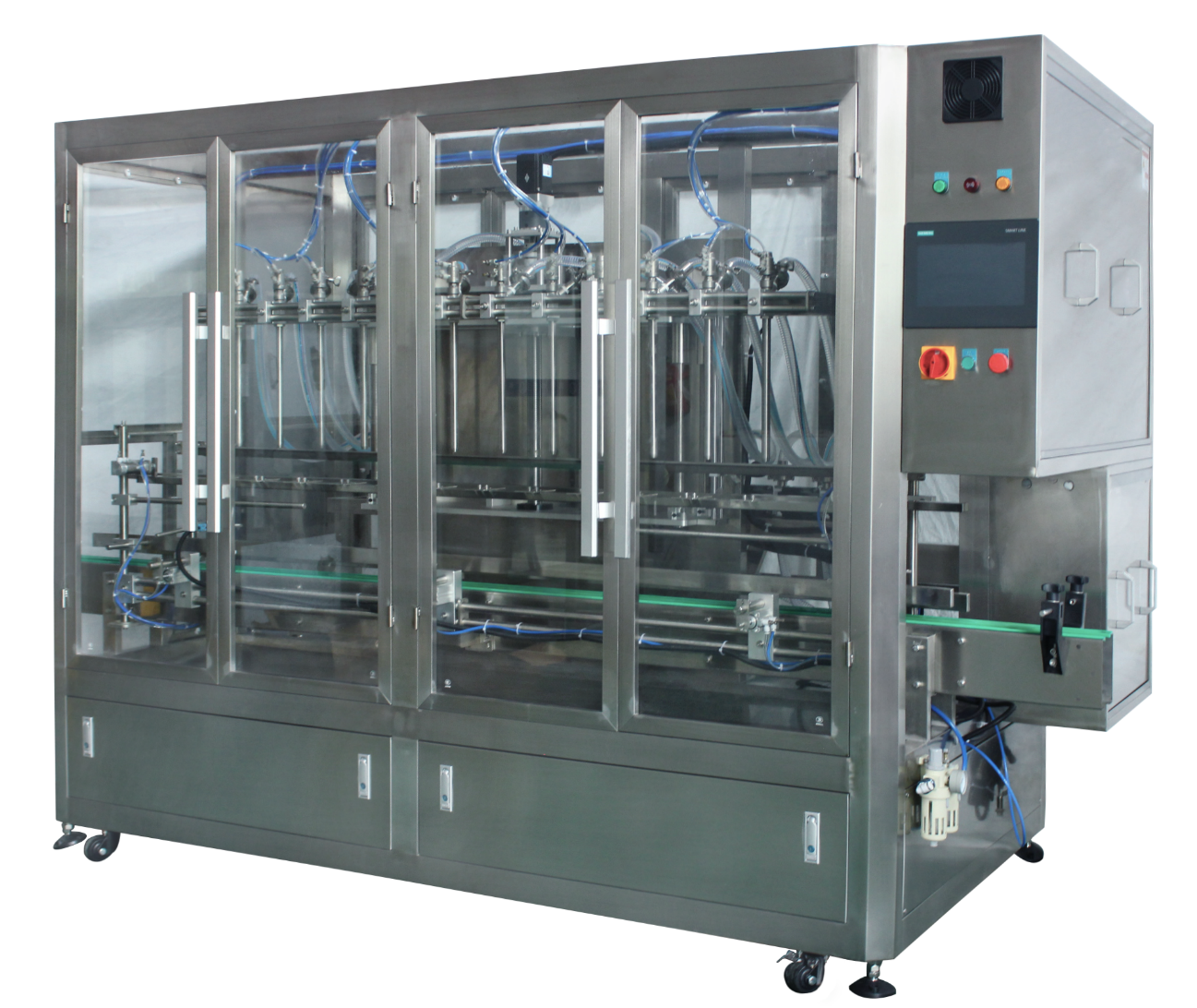

This Automatic Filling Line can be customized to fill various products, it is widely use into different oil factory, such as Palm Oil, Corn Oil, Soybeans Oil, Peanuts Oil, Olives Oil, Walnuts Oil, Tea Oil, Rapeseed Oil, Hemp Oil, Cooking Oil, Blended Oil, Chili Sauce, Ketchup, Vinegar, Cooking Wine, coconut milk etc factory

Main Features:(1) Each stand-alone machine can be operated independtly and linked on line using.(2) PLC control ,touch bottle operatation ,simple and convenient operation.(3) The use of internatioal famouse brand electrical components, performance and stability.(4) Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.(5) piston pump or weight filling system, measuring precision, convenient manipulation.(6) would according client different layout or special require to made. High precision measurement, large filling range, smooth operation, easy to clean, suitable for various shapes of container filling.
