Aerosol Tube Labeling Machine - Automatic High Precision
The aerosol tube labeling machine is a professional packaging equipment developed for the labeling process of
aerosol products. As a standard model, it adopts pneumatic drive and high precision photoelectric sensor positioning
system, realizing full-automatic integration of aerosol tube feeding, positioning, label feeding,labeling and finished
product discharging. It effectively ensures that the label is aligned accurately, the adhesion is firm and consistent, and
avoids label deviation, wrinkles and falling off, thus improving the packaging quality and beauty of aerosol products.
The machine adopts an integrated compact structure, which is reasonable in design, stable in performance and
strong in adaptability. It is widely used in the packaging link of cosmetic, pharmaceutical, chemical and other aerosol
products, and can meet the mass production needs of medium and small-sized enterprises. It is easy to install and
debug, with a humanized intelligent control panel, which can greatly reduce manual intervention, improve production
efficiency and reduce enterprise labor costs.
1. Full Automatic Operation: Integrate automatic feeding, positioning, label feeding, labeling and discharging,
no manual intervention required.
2. High Precision Labeling: Equipped with high-sensitivity photoelectric sensor and precise positioning
mechanism, labeling accuracy up to ±0.1mm, ensuring perfectalignment of labels without deviation.
3. Strong Adaptability: The standard model is compatible with most common aerosol tube specifications ,
which can be adjusted according to product needs.

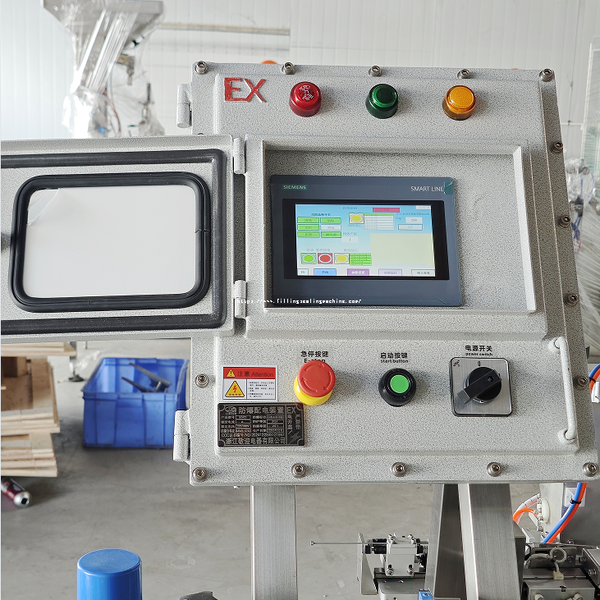

4. Intelligent Control: Equipped with touch screen control panel, supporting parameter preset, production
data statistics and fault alarm, easy to operate and maintain, no professional skills required.
5. Durable Structure: The main body is made of SUS304 stainless steel, corrosion-resistant, wear-resistant and
not easy to deform.

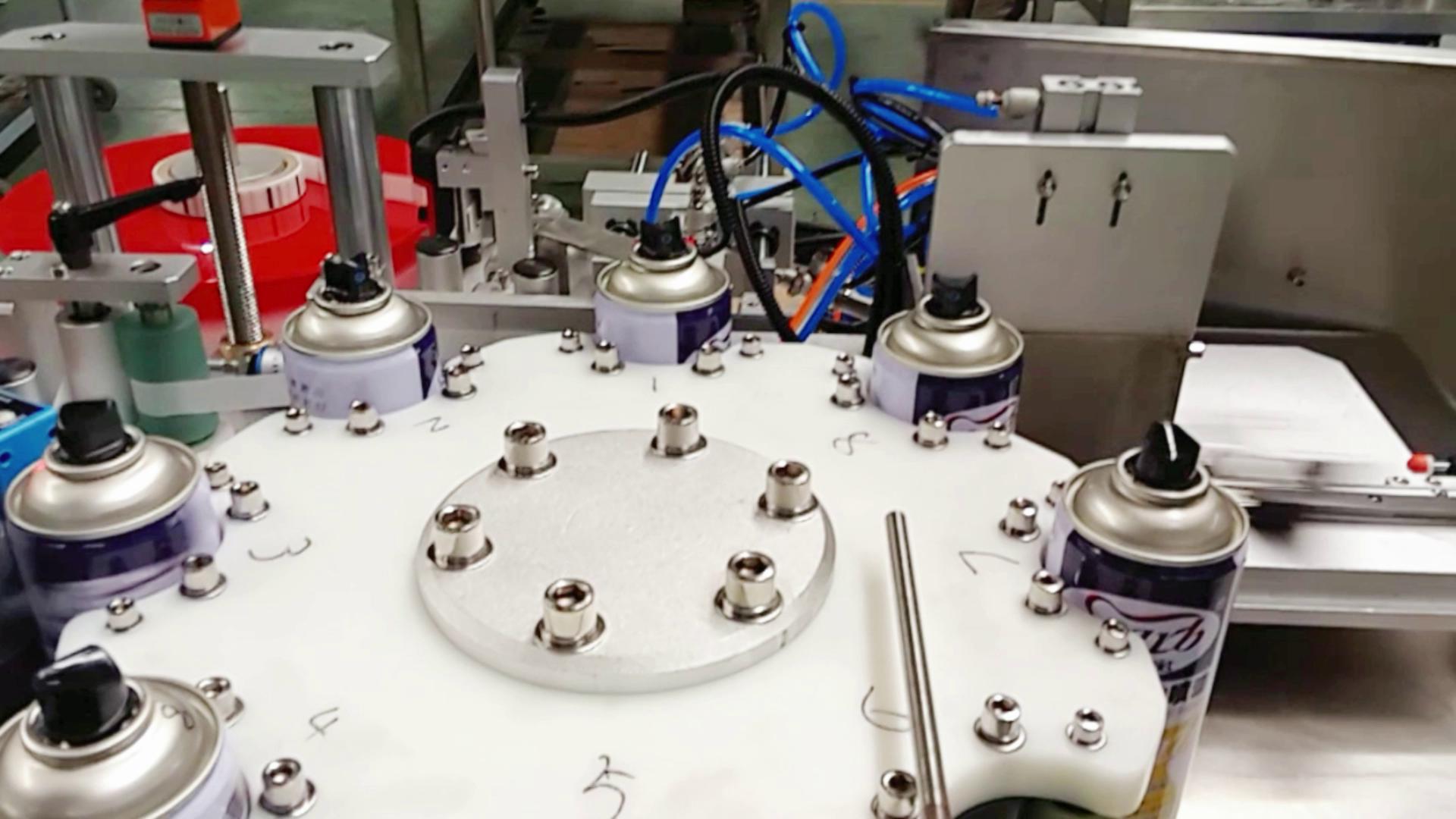

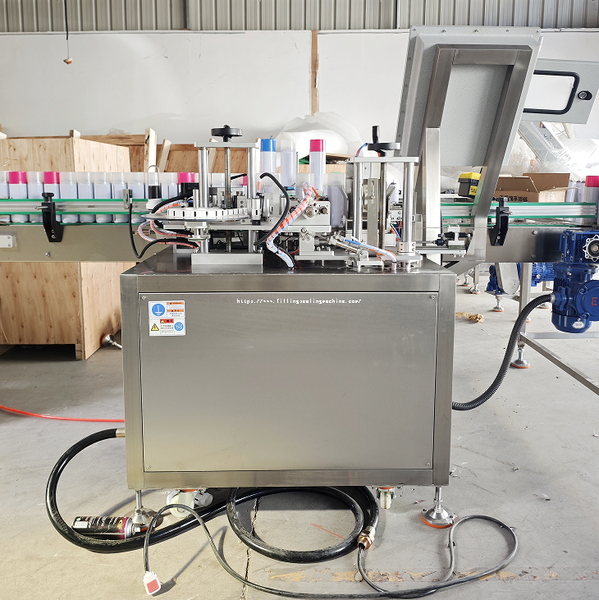

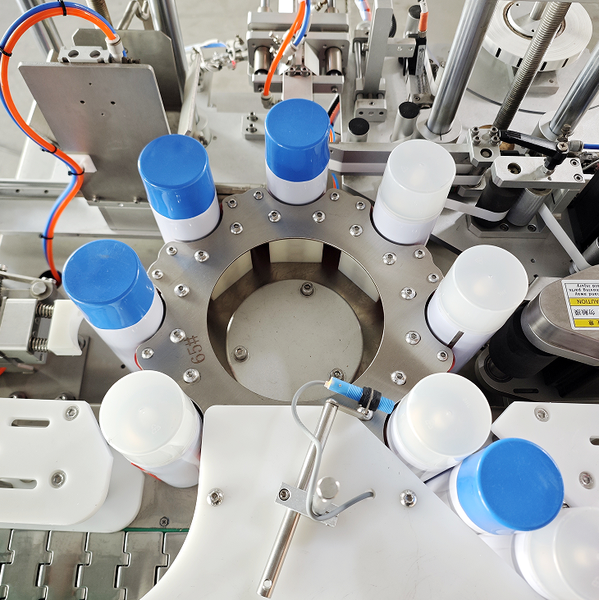

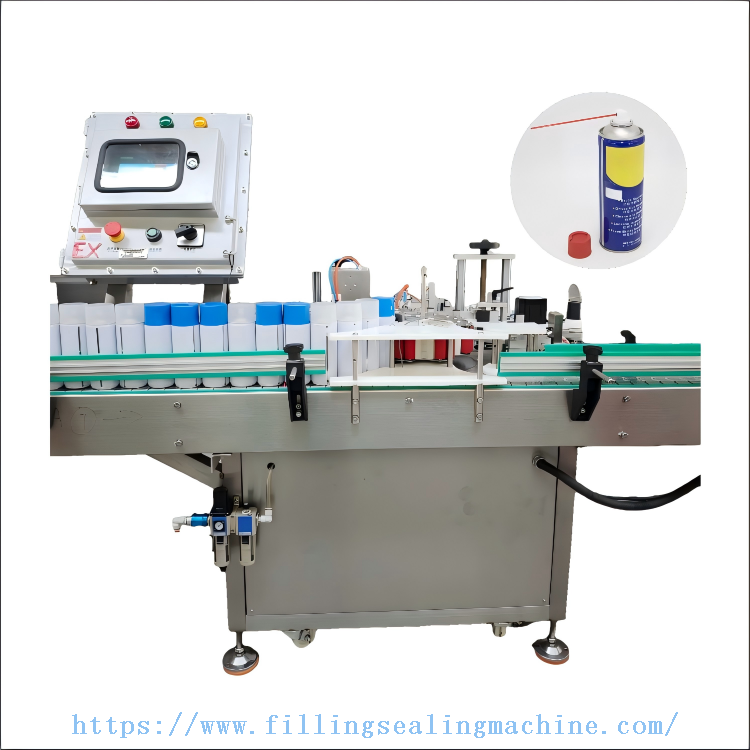

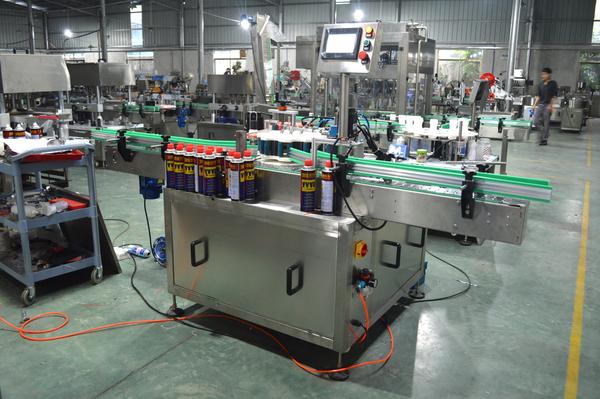

Photo Images
Parameter Name | English Specification |
|---|
Driving Mode | Electric |
Labeling Speed | 30-60 pcs/min |
| Applicable Tube Length | 80-200mm |
| Power Supply | AC 220V/380V, 50/60Hz |
Machine Weight | About 250kg |
Material | SUS304 Stainless Steel + Aluminum Alloy |
| Control System | Touch Screen |
1. Cosmetic Aerosol Industry: hair spray, facial mist, deodorant, body spray, etc.
2. Pharmaceutical Aerosol Industry: asthma inhalers, disinfectant sprays, medical cooling sprays, etc.
3. Chemical Aerosol Industry: insecticide sprays, lubricating sprays, cleaning sprays, rust removers, etc.
4. Daily Necessities Aerosol Industry: air fresheners, shoe care sprays, fabric refreshing sprays, etc.
5. Automotive Aerosol Industry: tire inflators, glass cleaners, anti-fog sprays, etc.
Customized service
Welcome to consult, We will provide a customized solution for you.
