Product Detail
Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing
service on...

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing

Function Filling Packaging etc
Original Guangzhou
MOQ 1 Set
Model Customizable
Manufacturer Yes we are
Oversea Service Yes, offer
Product Details

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line


Basic Information

Place of Origin: guangzhou ,china

Certification:GMP, CE

Model Number: F104

Minimum Order Quantity: one set

Price: directly factory price offer

Packaging Details: export wooden standard packing

Delivery Time: 36 work days.

Payment Terms: T/T, Western Union, MoneyGram

Get Best Price

Contact Now

Chat Now


Detail Information

Product Name:

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line

Application: Shampoo Bottle Packaging

Packaging Type: Bottles Or Bag

Filling Capacity: 100ml~500 Ml, 500~5000ml, Other Volume

Material: 304 Stainless Steel

Power: 4 KW /AC 220V 50/60HZ


Product Description

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line

ShampooHand SanitizerDisinfectantAlcohol Fully Automatic filling bottling capping sealing packin.jpg

Technical Parameters

1. Number of filling heads supply: 1 head, 2 head, 4 head, 6head, 8head, 10head, 12head,16heads, 18 heads,20heads

2. Filling capacity: 100ml to 500 ml, 500ml~5000ml, other voluem

3. Filling form: full servo drive filling, would filling with rising

4. Filling speed: about 2000 bottles / hour for 6head. 3000bottle /hour for 8nozzles etc...other output speed

5. Filling accuracy: ±1%

6. Material: 304 stainless steel for filling frame

7. Program control: PLC + touch screen

8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC

9. Air pressure: 0.6-0.8MPa

10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 850mm ± 25mm off the ground

11. Conveying motor: 370W variable frequency speed regulating motor

12. Power: about 4KW/AC220V 50/60HZ

13. Tank capacity: approx. 200 liters (with level switch).

Can be customized according to the actual situation of the customer


The machine is easy to handle and nice looking, it is wisely used and welcome in filling shampoo, Hand sanitizer ,disinfectant ,Shower Gel area,   This machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.


Automatic Bottle Filling Capping Machine Line for Hand Sanitizer / Disinfectant / Alcohol. Factory Direct Sale/ Fast Delivery/ Installation/ high quality/ good using/ easy handle.

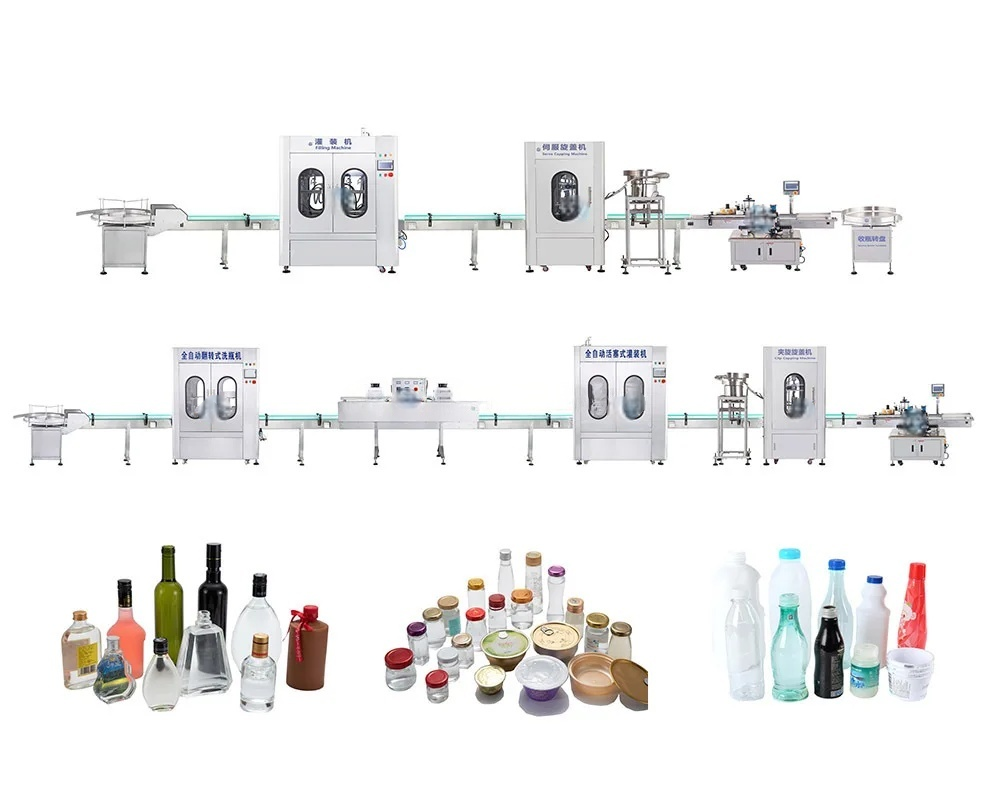

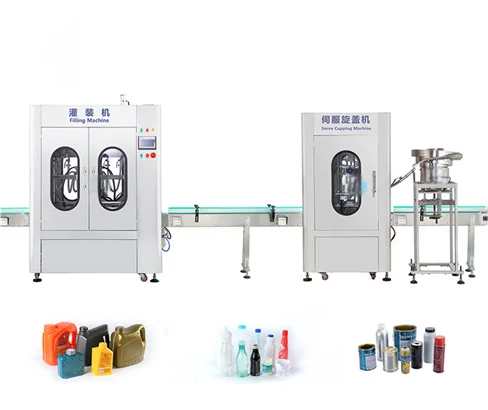

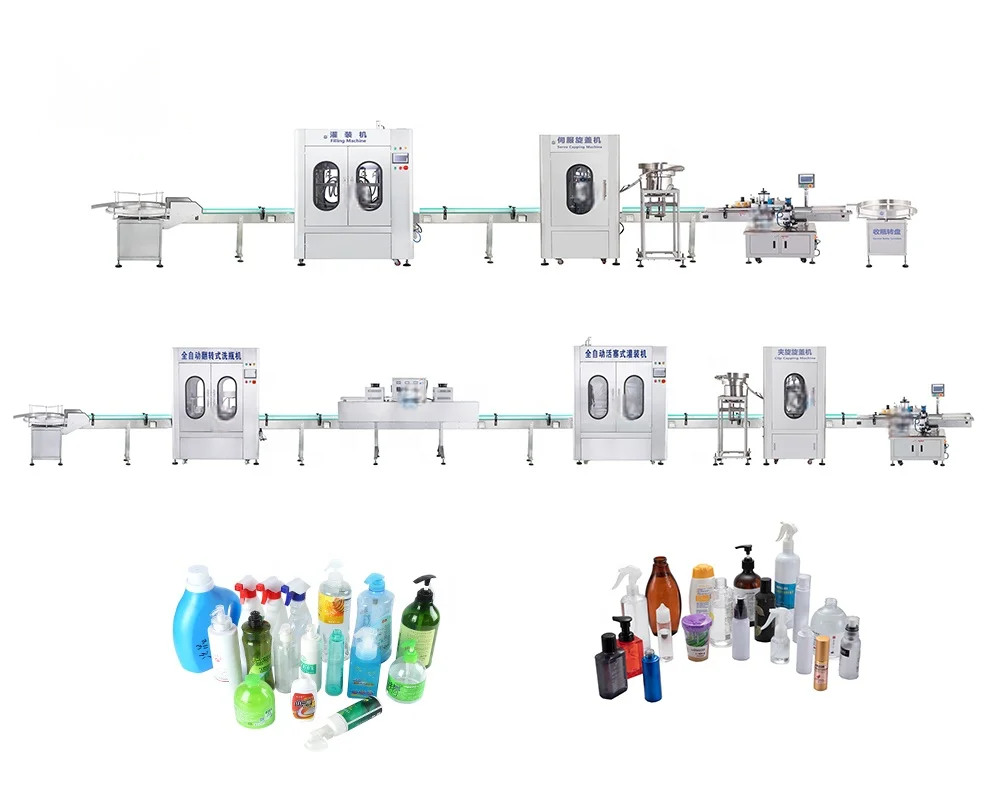

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line 1

Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line 2


we are the Filling machine manufacturer, famous for High quality guarantee China Filling Machine

and we offer One piece at wholesale price

we would be customized as requirements

2020 2021 2022 year hotsale items have shampoo filling machine

Bottle Filling Line

Bottle Packaging Line

One Stop Filling Machine

Auto Shrink Wrap Machine

alcohol filling machine

hand sanitizer filling machine

adhesive filling machine

Viscous liquid filling machine


Shampoo/Hand Sanitizer/Disinfectant/Alcohol Fully Automatic filling bottling capping sealing packing machine line   would single useing or match with capping machine, labeling machine together use as one filling line, Fully Automatic Shampoo Bottle Filling Machine match with different customer require, And is loved by the operators, hotsales items such like Shampoo filling machine,soap liquid filling machine,automatic filling machine,liquid filling machine.
