Подробная информация о продукте

Continuous Electromagnetic Induction Aluminum Foil Sealing Machine

Function Filling Capping/Sealing
Original Guangzhou
MOQ 1 Set
Model Customizable
Manufacturer Yes we are
Oversea Service Yes, offer
Product Details

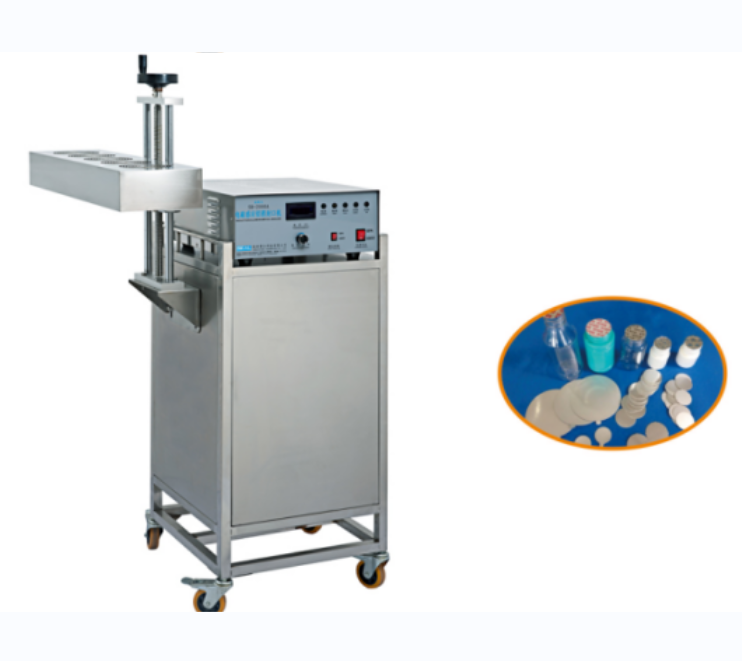

Continuous Electromagnetic Induction Aluminum Foil Sealing Machine


Product Description


Continuous Electromagnetic Induction Aluminum Foil Sealing Machine

Continuous electromagnetic induction aluminum foil sealing machine

Scope of application:


Suitable for sealing plastic bottles and glass bottles of pesticides, medicines, foods, cosmetics, oils, etc.




Technical Parameters


1. Number of filling heads: 1 head. 2 head, 4 head. 6head


2. Filling capacity: 100ml to 5000ML


3. Filling form: full servo drive filling


4. Filling speed: about 1800-2000 bottles / hour for 1head.


5. Filling accuracy: ±1%


6. Material: 304 stainless steel for filling frame


7. Program control: PLC + touch screen


8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC


9. Air pressure: 0.6-0.8MPa


10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 750mm or 850mm ± 25mm off the ground


11. Conveying motor: 370W variable frequency speed regulating motor


12. Power: about 4KW/AC220V 50/60HZ


13. Tank capacity: approx. 150- 200 liters (with level switch).


Basic Information

Place of Origin: GUANGZHOU ,CHINA

Minimum Order Quantity: one set

Price: directly factory offer

Packaging Details: export wooden case packing

Delivery Time: 45 work days.

Payment Terms:T/T, Western Union, MoneyGram


Technical parameters:

bottle neck diameter20mm-120mm
bottle height0-490mm
flow packing line speed0-10m/min
max power2000W
sealing speed0-200blts/min
electricity power220V, 50/60Hz
Induction sensor size (L*W*H)665mm*170mm *100mm
machine size450mm*450mm*1060mm
machine weight48kg
packaged size1060mm*815mm*555mm
package weight78kg

Can be customized according to the actual situation of the customer


Detail Information

Automatic Grade: Fully Automatic

Key Selling Points: Easy To Operate

Feature: Effective Filling And Sealing


main machine: Induction Aluminum Foil Sealing Machine, Electromagnetic Aluminum Foil Sealing Machine, PLC Conduction Sealing Machine

Continuous Electromagnetic Induction Aluminum Foil Sealing Machine

Continuous Electromagnetic Induction Aluminum Foil Sealing Machine

Continuous Electromagnetic Induction Aluminum Foil Sealing Machine

Can be customized according to the actual situation of the customer
