Automatic diagnostic reagent liquid tube filling production machine line

Function Filling Packaging etc
Original Guangzhou
MOQ 1 Set
Model Customizable
Manufacturer Yes we are
Oversea Service Yes, offer
Product Details

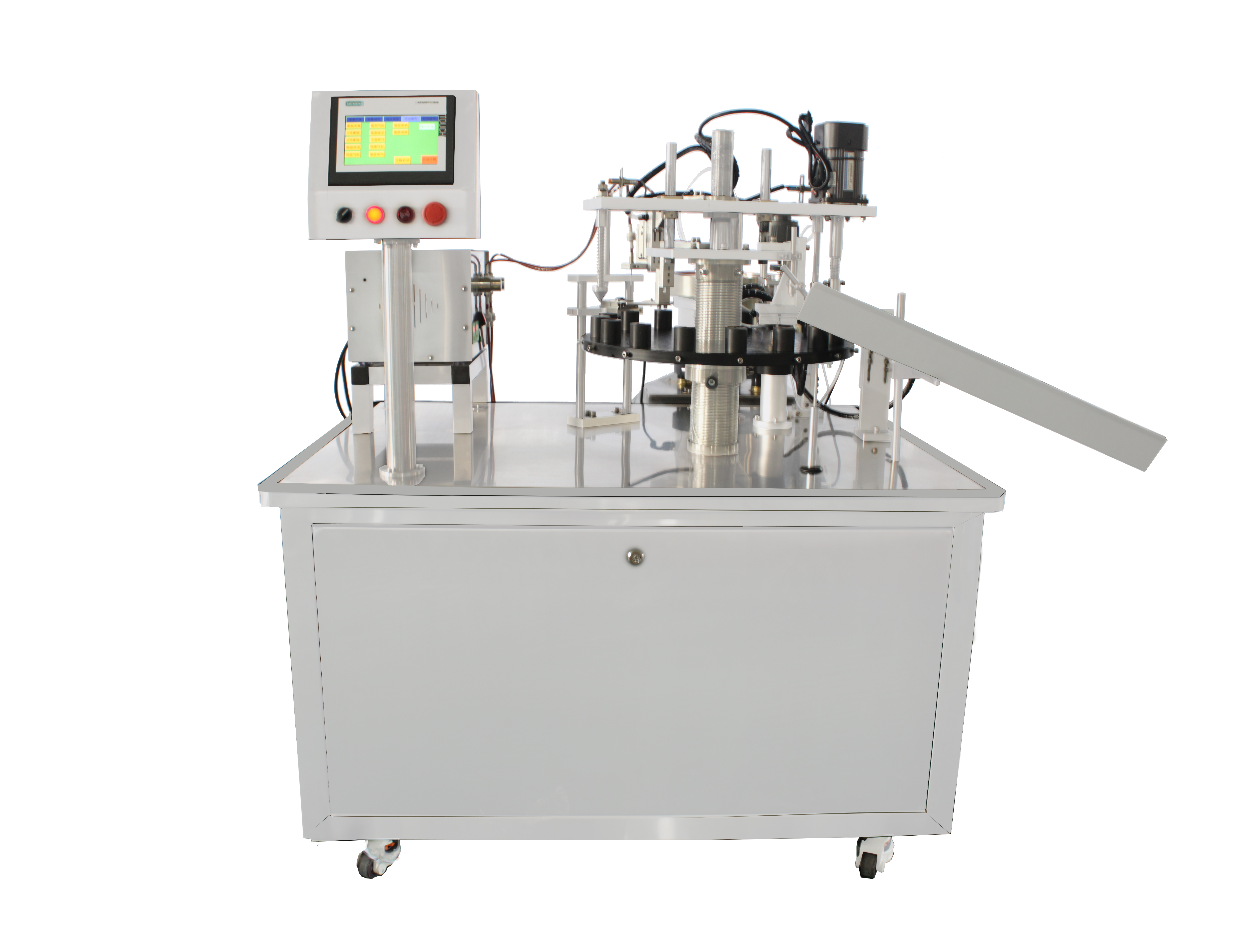

High quality Automatic diagnostic reagent liquid tube filling production machine line


High quality Automatic diagnostic reagent liquid tube filling production machine line is a small filling machine for packaging equipment, a small bottle of liquid material automatic filling equipment, with stable performance.


It is suitable for small batch production of small and medium-sized enterprises such as hospital preparation rooms, pharmaceutical factories, veterinary drug factories, beverage factories, daily chemical factories, laboratories, etc., and can be filled: eye drops, injections, vials, vials, etc. Oral liquid, reagent, cooking oil.

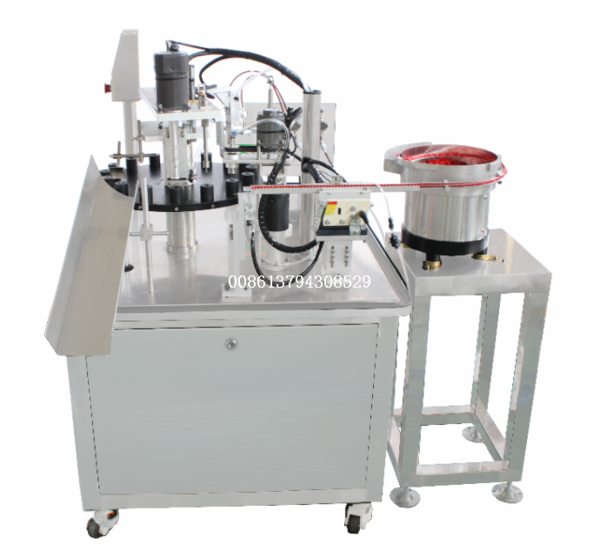

Automatic diagnostic reagent filling machine equipment.jpg

High quality Automatic diagnostic reagent liquid tube filling production machine line The whole machine is compact and reasonable in design, made of stainless steel, easy to clean, controlled by a programmable controller (PLC), and operated by touch screen, with stable work, easy operation, high production efficiency, and accurate filling measurement. It has the characteristics of high degree and wide application range.

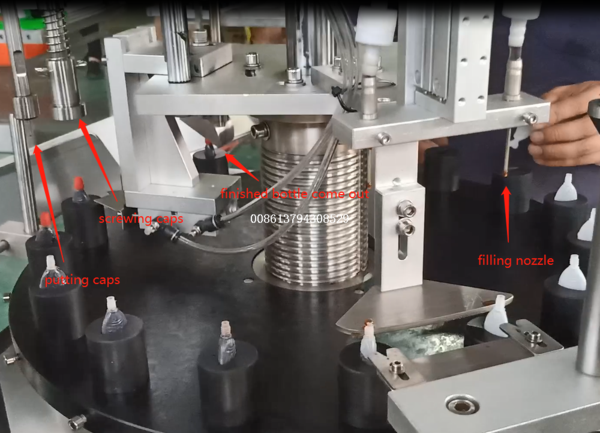

Automatic diagnostic reagent filling machine equipment (3).jpg


High quality Automatic diagnostic reagent liquid tube filling production machine line Technical parameters:


1. Filling speed: 1000~1500 bottles/hour

2. Bottle feeding method: bottle automatic feeding or putting by hand

3. cap putting method: automatic putting cap

4. Number of filling heads: 1 or 2 nozzles

5. Number of bottle/tube holes: 16 pcs

6, Filling method: peristaltic pump filling

7, Filling capacity: about 3ml ~30ml

8, Filling accuracy; ±1%

9. Number of sealing heads: 1 or 2 nozzles

10, Material: the frame adopts 304# stainless steel

11, The whole machine power: about 1KW

12, Program control: PLC+ touch screen

13, Air pressure: 0.6-0.8mpa

14, Power supply: AC220V/380V, 50/60Hz.

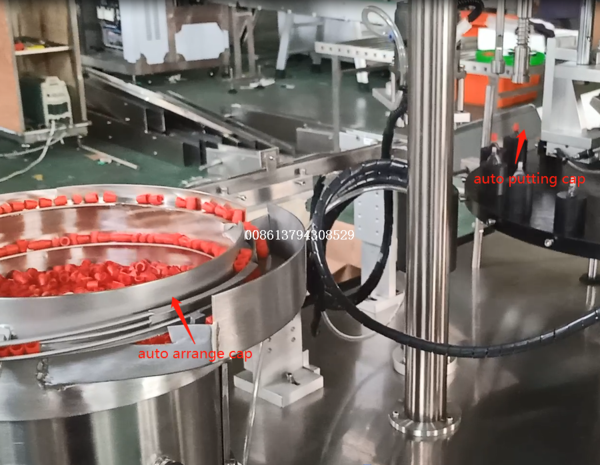

Automatic diagnostic reagent filling machine equipment (2).jpg


Automatic diagnostic reagent filling machine equipment (1).jpg

The automatic filling machine for diagnostic reagents has the functions of automatic filling, automatic capping and capping, automatic capping, automatic bottle discharge, etc. It is suitable for filling round bottles of various glass and plastic materials. Precise quantitative filling and capping operations for small doses of liquids such as pharmaceutical reagents, high-end cosmetics, essences, medicines, cosmetics, etc.


It is made of 304 stainless steel, and the pump body is made of 316 stainless steel. It is suitable for bottles, square bottles, round bottles, special-shaped bottles and other bottles, and fully meets the requirements of GMP.


Diagnostic reagent filling machine application: widely used in pharmaceutical factories, laboratories, scientific research institutes, etc., for the filling of biological agents, oral agents, injections, advanced cosmetics, flavors, fungicides and other liquids. It can also be filled with small soy sauce, would according to food requirements to made.
