Pneumatic Aerosol Gas Filling Machine - High Precision Explosion-Proof
Product Introduction

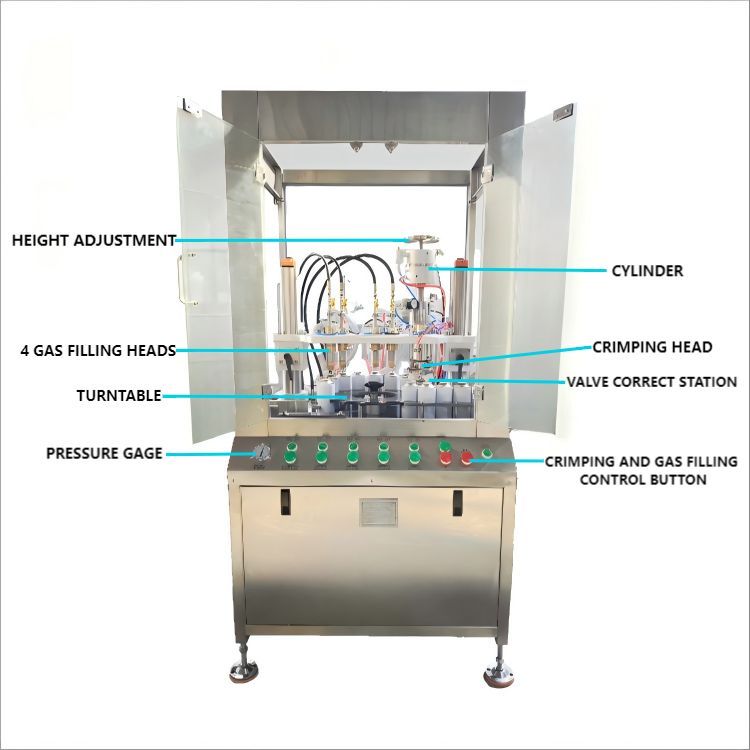

The automatic pneumatic aerosol gas filling machine is a professional packaging equipment developed for the
propellant gas filling process of aerosol products. Driven by compressed air, it realizes fully automatic, high-precision
filling of aerosol cans, with integrated automatic feeding, pressure detection, filling control and discharging functions.
The machine ensures consistent internal pressure and filling volume to prevent leakage and guarantee product safety.
As a standard model, it features an explosion-proof design and internationally advanced manufacturing technology,
with a rational structure, stable performance, and strong adaptability. It is widely used in large-scale production of
pharmaceutical, cosmetic, and chemical aerosol products, and can meet the production needs of medium and large
enterprises.
Main Advantages
1.Pneumatic design: No sparks will be generated, making it safer and more reliable to use.
2.High Precision Filling Control: Adopts a pneumatic proportional control system with filling accuracy up to ±0.5%,
ensuring consistent product quality.
3.Stable Pneumatic Drive: Powered by compressed air, eliminating electric spark risks, with low noise, energy saving,
and environmental protection.
4.Strong Adaptability: The standard model is compatible with most common aerosol can specifications (35-70mm
diameter) and various propellants (LPG, dimethyl ether, CO2, etc.).
5.Durable Structure: The main body is made of SUS304 stainless steel, corrosion-resistant and wear-resistant
Technical Parameters
Parameter Name | English Specification |
|---|
Driving Mode | Pneumatic |
Air Pressure Requirement | 0.5-0.7MPa |
Crimping Speed | 30-50 pcs/min |
Applicable Can Diameter | 35-70mm |
| Applicable Propellant | LPG, Dimethyl Ether, CO2 etc. |
Machine Weight | About 550kg |
Material | Stainless Steel (SUS304) +Aluminum Alloy |
Application Scenarios
Pharmaceutical Aerosol Industry: Suitable for large-scale filling of medical aerosols such as asthma
inhalers and disinfectant sprays.
Cosmetic Aerosol Industry: Applicable to mass production of cosmetic aerosols such as hair spray,
facial mist, and deodorant sprays.
Chemical Aerosol Industry: Used for high-speed filling of chemical aerosols such as insecticide sprays,
lubricating sprays, and cleaning sprays.
Daily Necessities Aerosol Industry: Suitable for large-batch filling of daily necessities aerosols such as
air fresheners and shoe care sprays.
Automotive Aerosol Industry: Applicable to mass production of automotive maintenance aerosols
such as tire inflators and rust removers.
