Pesticide Filling Machine - Automatic Corrosion-Resistant
Product Introduction
This automatic pesticide filling machine is a standardized filling equipment specially designed for corrosive materials
such as liquid pesticides, agricultural chemicals, and liquid fertilizers. It integrates integrated functions including
automatic feeding, precise metering, and finished product conveying. Equipped with an intelligent control system,
the equipment is easy to operate, can quickly switch between different filling specifications, and is suitable for variou
pesticide formulations such as emulsifiable concentrates, suspensions, aqueous solutions, herbicides, and insecticides
The overall sealed design of the machine body effectively prevents pesticide volatilization and leakage, ensuring the
safety of operators and the cleanliness of the production environment, making it a core equipment for pesticide
manufacturers to achieve automatic and standardized filling.
Main Advantages
✅Excellent Corrosion Resistance：The core parts in contact with materials are made of 316 stainless steel,
treated with special anti-corrosion technology, which can resist erosion by various acidic and alkaline pesticide
materials and extend the service life of the equipment.
✅Precise Metering： The filling accuracy error is ≤±0.5%, ensuring uniform dosage of each bottle and complying
with pesticide product quality standards.
✅Automatic and Efficient：Full-process automatic operation without manual intervention, filling speed up to
20-60 bottles per minute (adjustable according to specifications), greatly improving production efficiency and
reducing labor costs.

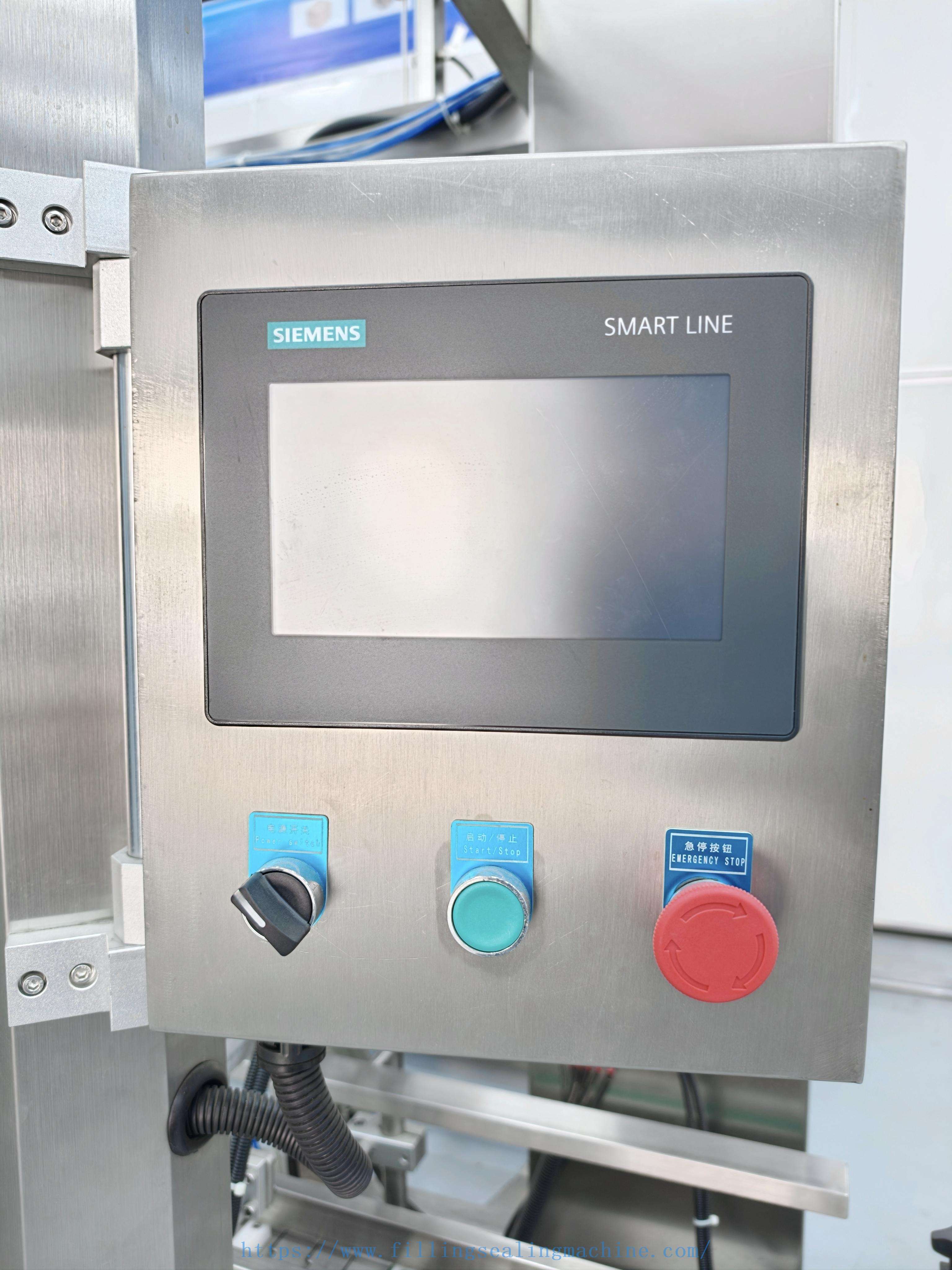

✅Safe and Reliable：Equipped with emergency stop button, anti-leakage alarm device and overload protection
function, the machine body is well sealed to prevent pesticide volatilization from harming the human body,
complying with industrial safety standards.

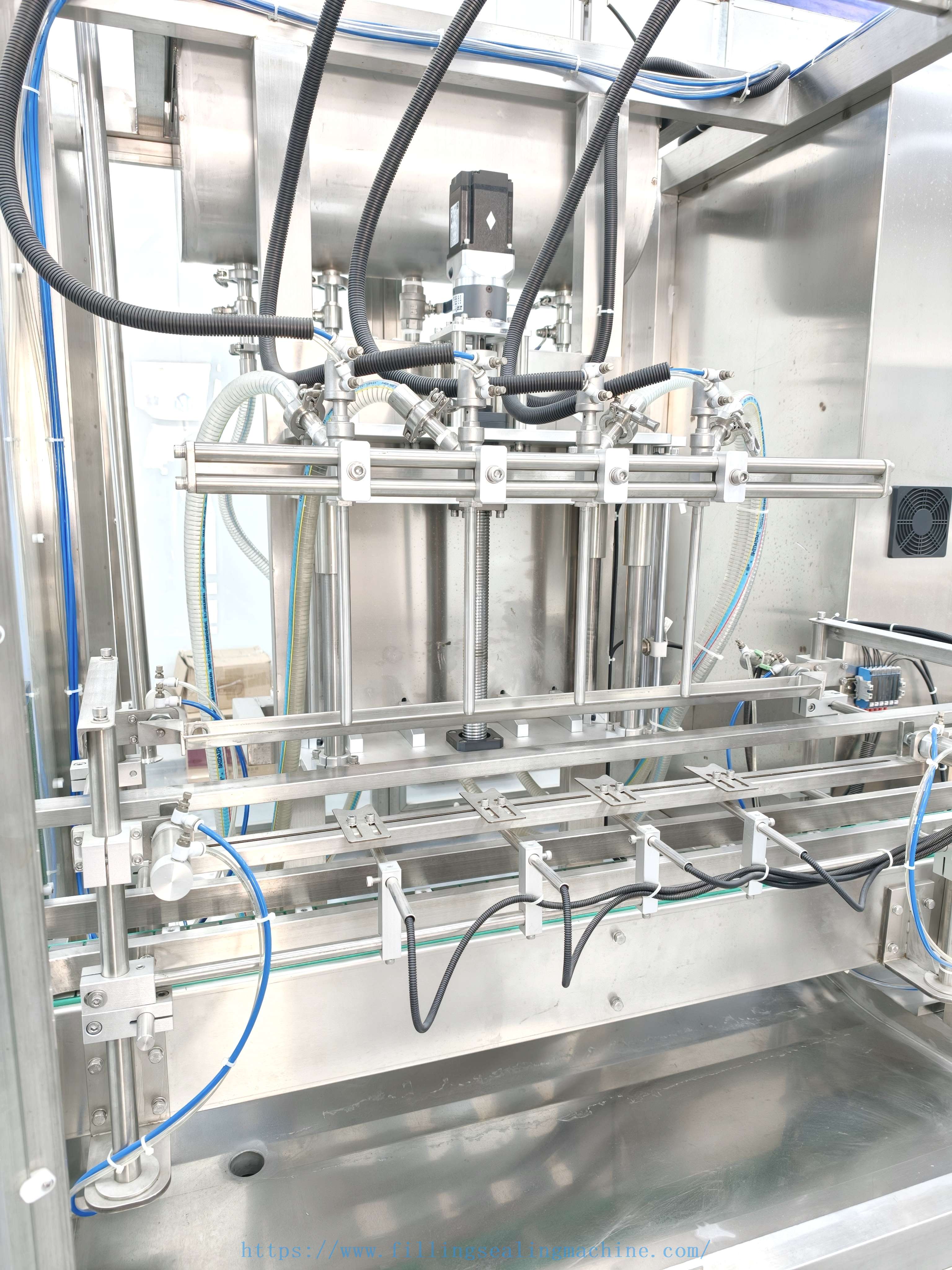

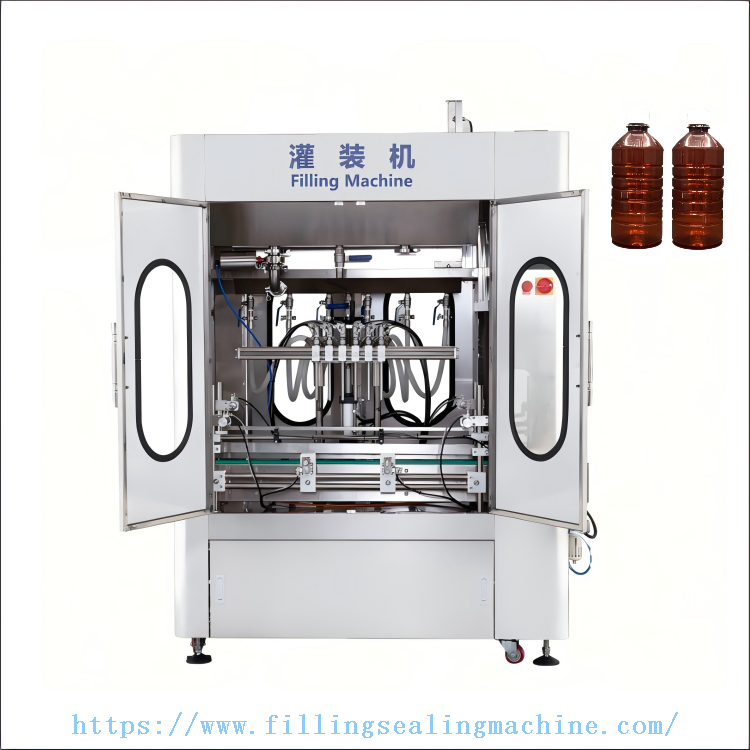

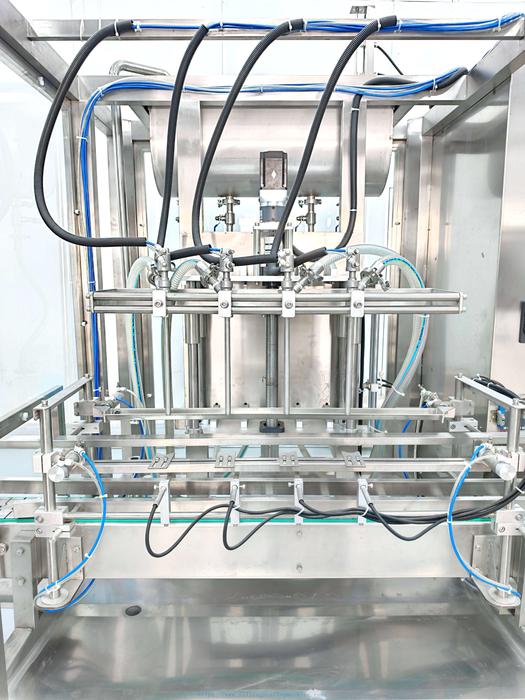

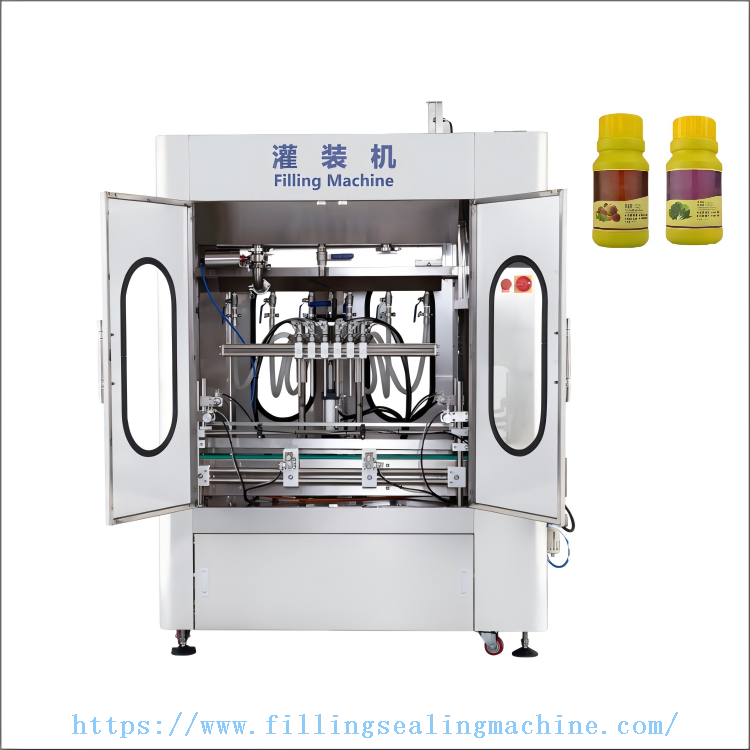

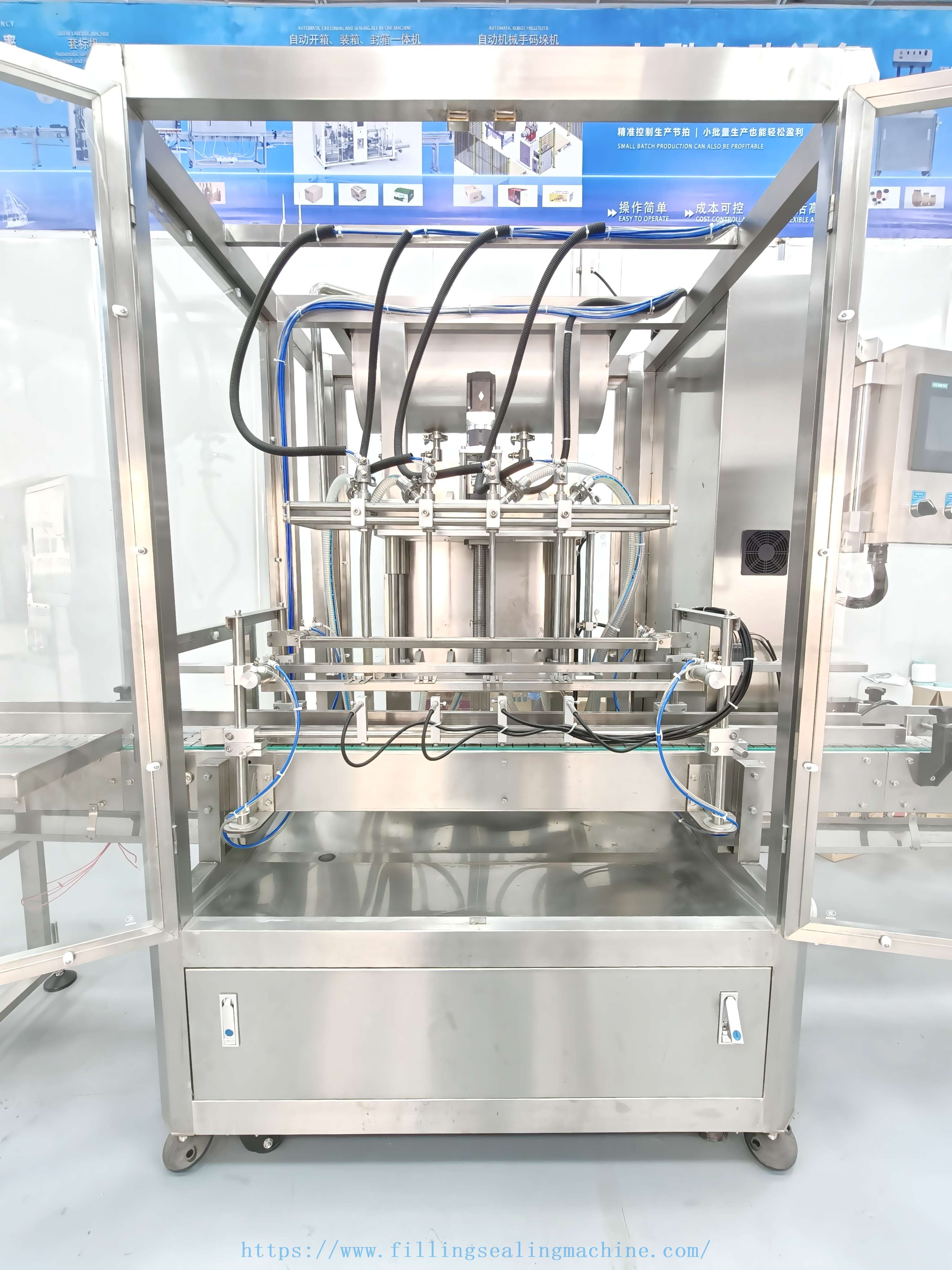

Product Photos
Technical Parameters
Filling Accuracy | ≤±0.5% |
Warranty | 1Year |
Type | Automatic |
Packaging type | Bottles/Cans/Barrels/ball |
Speed | 20-60 bottles/min (Customizable) |
Power | 1.5-3KW |
Voltage | 220V/380V，50/60Hz |
Weight | 800KG |
This pesticide filling machine is designed for multi-scenario production, with wide adaptability to meet
diverse industrial needs:
✅ Core Application Fields
Agriculture, chemical industry, agricultural materials processing, and chemical reagent production.
✅ Suitable Products
Liquid pesticides & related products including:
Insecticides, herbicides, fungicides, plant growth regulators
Foliar fertilizers, liquid fertilizers, nutrient solutions
Agricultural disinfectant water
✅ Adaptable Enterprises
Pesticide production factories
Agricultural materials processing plants
Chemical reagent manufacturers
Small, medium and large-scale production lines
Customized service
Welcome to consult, We will provide a customized solution for you.
