Best Quality Antidrop Cooking Edible Oil Coconut Oil and Palm Oil filling Sealing Machine
Food oil filling line, new edible oil filling machine, oil filling machine assembly line manufacturer, fast filling speed. Accurate metering, automatic liquid filling machine, clean and environmentally friendly, airtight filling, no dripping, complete variety, can be used together with filling machine, capping machine, and labeling machine.
Antidrop Cooking Oil Edible Oil Coconut Oil and Palm Oil filling Sealing Machinea dvantage:
| 1,Efficient filling | only one filling heads would reach the high-speed,using infrared sensor to accurately find the bottle, follow-up filling, no pause in the production process, filling about 2000 bottles per minute with a capacity of about 500ml. would save the space when you use this machine. |
| 2,Smart machine | The mobile high-speed filling machine can debug the bottles of different shapes, different heights and different capacities in just a few minutes, and enter the next wave of production, completely solving the problems due to the wide variety, the small number of single items and frequent adjustments. Time-consuming and laborious problem. |
| 3,Accurate capacity | The mobile high-speed filling machine adopts full-automatic servo motor to drive the piston filling, and the filling quantity is accurate and uniform, completely solving the trouble caused by the error of filling capacity. |
| 4,Small footprint | Automatic Filling Machine is small and exquisite, and the installation site of the whole machine only needs 4 square meters, which greatly saves production space and effectively improves the utilization rate of the workshop. |
| 5,Automatic cleaning | Automatic Filling Machine has an automatic cleaning function, which can reduce the workload of the workshop more effectively and greatly save the time of refueling and replacing the production line. |
| 6,Cost-effective | Automatic Filling Machine is beautiful and durable. The whole machine is made of stainless steel 304, and the surface metal wire drawing process is of great value. |

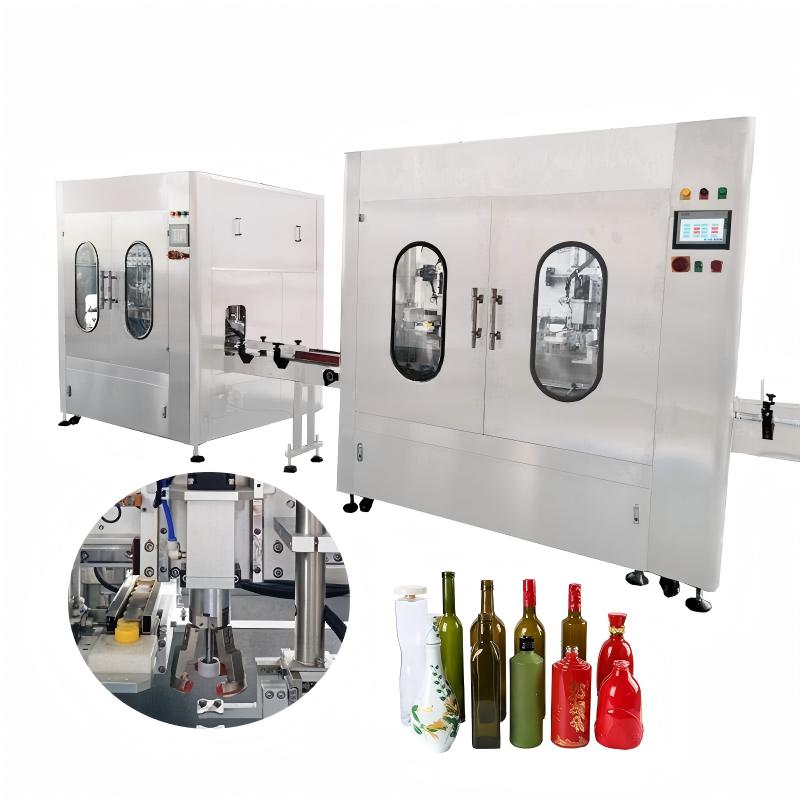

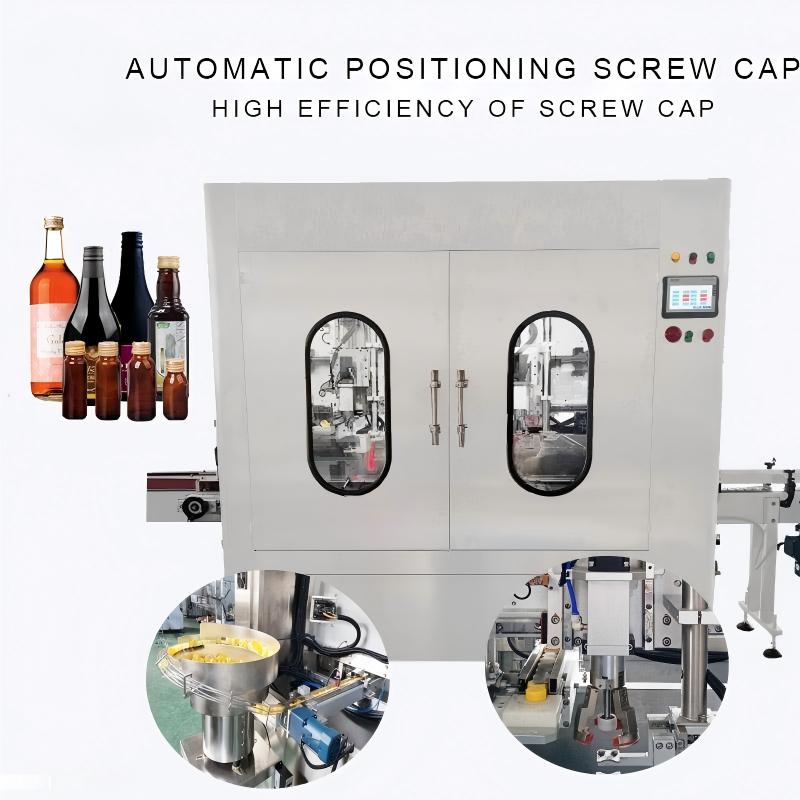

Antidrop Cooking Oil Edible Oil Coconut Oil and Palm Oil filling Sealing Machine Photo reference
Antidrop Cooking Oil Edible Oil Coconut Oil and Palm Oil filling Sealing Machine Technical Parameters
1. Number of filling heads: 2 head
2. Filling capacity: 100ml to 500ml
3. Filling form: full servo drive filling
4. Filling speed: about 2000~3000 bottles / hour .
5. Filling accuracy: ±99%
6. Material: 304 stainless steel for filling frame
7. Program control: PLC + touch screen
8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC
9. Air pressure: 0.6-0.8MPa
10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm off the ground
11. Conveying motor: 370W variable frequency speed regulating motor
12. Power: about 3.8KW/AC220V 50/60HZ
13. Tank capacity: approx. 150liters (with level switch).
14. cap style: would choose screwing capping and automatic fellowing up screw capping.
15. would match with labeling machine, carton sealing machine and weight checking machine etc machine together use as one full line.
Can be customized according to the actual situation of the client bottle samples
Antidrop Cooking Oil Edible Oil Coconut Oil and Palm Oil filling Sealing Machine is suitable for different oils, such as:
Antidrop Cooking Oil Edible Oil Coconut Oil and Palm Oil filling Sealing Machine has advanced full-automatic control technology, accurate measurement error, automatic identification of filling equipment and automatic material replenishment, high efficiency, high output, simple operation and long service life of filling equipment
